The new M2 is what you’ve been waiting for [VIDEO]

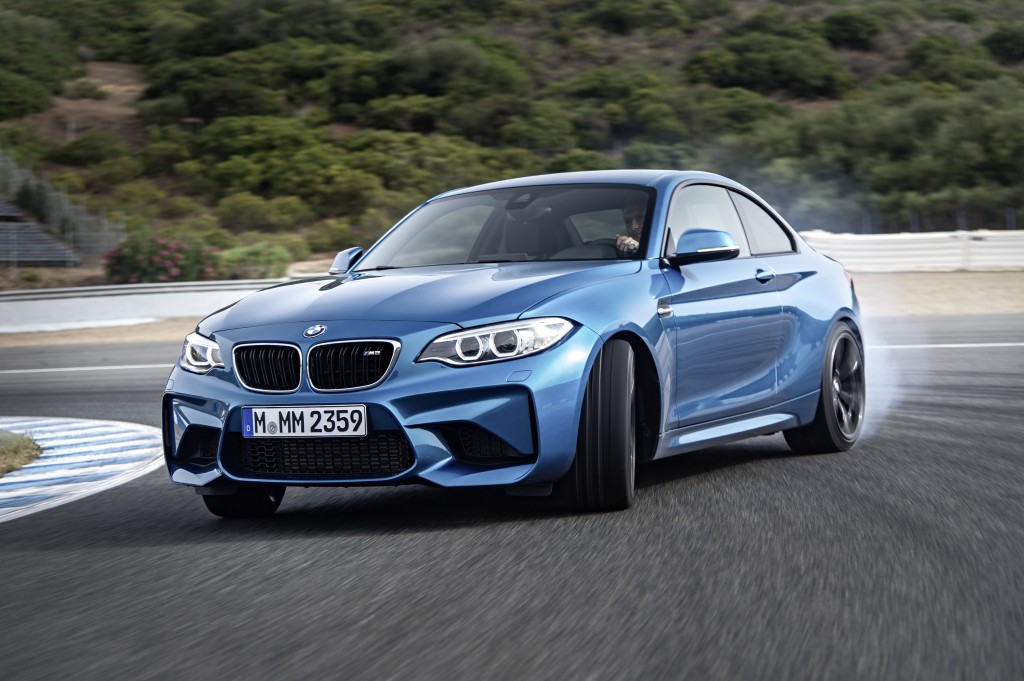

P90199694-highRes

Today, BMW M GmbH unveiled the newest member of its product family, the all-new 2016 BMW M2. The 6-cylinder under the hood is in keeping with the finest M tradition, ensuring unbeatable driving dynamics on the track with exceptional power delivery and the signature, outstanding driving behavior thanks to rear-wheel drive agility and lightweight aluminum M Sport suspension. The innovative M TwinPower Turbo technology ensures outstanding torque available across a wide rev band with rapid responses and excellent efficiency, raising the pulse with its distinctive engine soundtrack.

With an output of 365 bhp at 6,500 rpm and maximum revs of 7,000 rpm this all-new M2 is more powerful than its predecessor, the 1 M Coupe. The 3.0-liter 6-cylinder inline engine’s peak torque leads the way in this segment; a full 343 lb-ft is on tap between 1,400 and 5,560 rpm, with the overboost function raising this figure by 26 lb-ft to 369 lb-ft between 1,450 and 4,750 rpm. That’s more than 70 lb-ft of additional torque than the past generation M3, ensuring plenty of torque is available in all driving situations.

P90199708-highRes



As standard, the M2 comes as standard with a six-speed manual gearbox, which stands out with its compact design and low weight. The use of a new type of carbon-fiber friction lining enhances shift precision. Dry-sump lubrication prevents any sloshing of the transmission oil and ensures all components benefit from an efficient supply of lubricant. An engagement speed control function, which blips the throttle on downshifts and lowers the engine’s revs on upshifts, makes gear changes even smoother and lends the car additional stability during hard driving on the track. Experienced drivers can still take pride in performing the task of perfectly orchestrated down-shifts on their own by deactivating the system in DSC OFF mode.

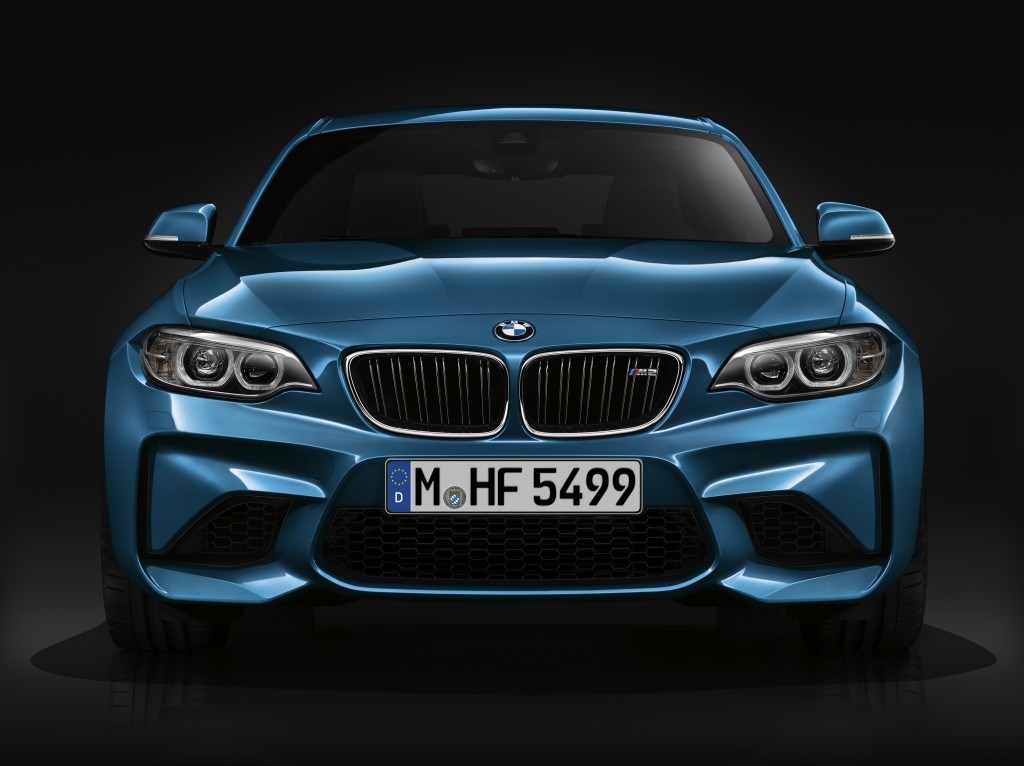

P90199706-highRes

The all-new BMW M2 can be ordered as an option with the latest generation of the seven-speed M Double Clutch Transmissions (M DCT with Drivelogic). This system, which effectively combines two gearboxes, each with its own clutch, is specially designed to work with the customary engine dynamics of M cars and the engine’s high torque and output. The system detects which gear the driver will choose next based on the engine’s revs, the accelerator position, the level of acceleration and the driving mode, and engages it before the driver has actually moved the shift paddle. As a result, the clutches now only need to open or close for the gear-change process to be completed. The change of gear is therefore executed in fractions of a second. Depending on the driving mode activated, it enables either extremely fast gear changes with no interruption in the flow of power or ultra-smooth shifts. The extra gear of the M DCT transmission over the six-speed manual gearbox allows for tightly spaced gearing and reduced fuel consumption thanks to its taller gear ratios.

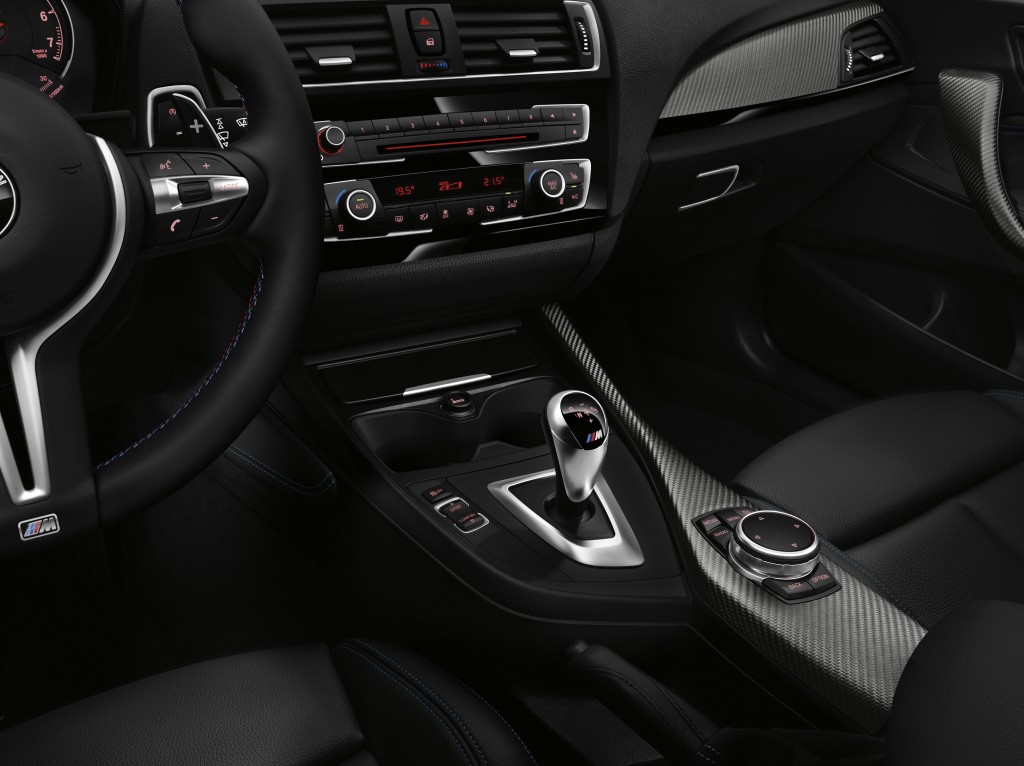

P90199712-highRes

With the optional M Double Clutch Transmission (M DCT) in place and Launch Control activated, the new BMW M2 completes the sprint from a standstill to 60 mph in a scant 4.2 seconds (4.4 s with the six-speed manual gearbox).

The basic requirement for a top-level driving dynamics vehicle is a high level of rigidity and a low axle system weight with reduced unsprung mass. That’s why the BMW M GmbH engineers have referred back to the lightweight aluminum front and rear axles of the BMW M3 and M4 models for the all-new BMW M2. The control arms, wheel carriers, axle subframes and stiffening plate of the double-joint spring-strut front axle weigh 11 pounds less than would be the case with a conventional steel construction. Further weight savings are provided by use of aluminum in the suspension struts and tubular anti-roll bar.

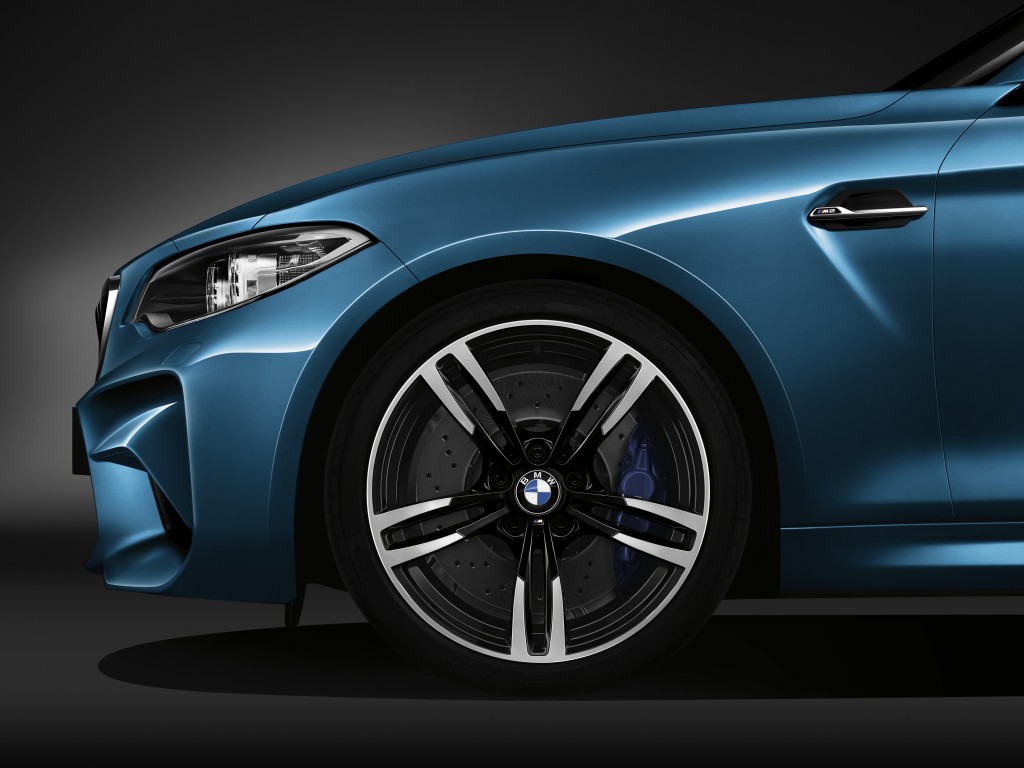

P90199711-highRes

In order to ensure extremely precise wheel location, play-free ball joints are used to transmit transverse forces. A stiffening plate in the underbody provides additional bolted connection between the axle subframe and the body sills, which increases the stiffness of the front-end structure. The longitudinal forces passing through the suspension are transmitted directly via special elastomer bearings delivering precise handling feedback.

All the control arms and wheel carriers of the all-new BMW M2’s five-link rear axle are made from forged aluminum, which reduces the unsprung masses of the wheel-locating components by more than 6 pounds compared to a steel construction. In addition, a racing-derived rigid connection, without rubber bushings, is used to fix the lightweight steel grid-type rear axle subframe to the body. This further improves wheel location and tracking stability. The axle kinematics – which govern the movement of the wheels under compression according to the arrangement of the control arms – are similarly tuned to deliver the precise wheel location typical from M cars.

P90199707-highRes

The lightweight 19-inch forged wheels (front axle: 9J x 19, rear axle 10J x 19) substantially reduce rotating and unsprung masses. Together with the exclusive 19-inch Michelin Pilot Super Sport tires measuring 245/35 ZR 19 in the front and 265/35 ZR 19 at the rear. This set-up makes a considerable contribution to the outstanding dynamic properties of the M2 and, at the same time, ensure impressive everyday ride comfort.

The high-performance brakes of the all-new BMW M2 are also a product of motor sport and can be quickly identified by their brake calipers – front axle: four-piston fixed calipers, rear axle: two-piston fixed calipers – which are painted in a blue metallic finish and display the M logo at the front axle. In these M compound brakes the perforated and inner-vented brake disc ring is made from grey-cast iron for a massive 15 inch diameter rotor at the front axle and equally impressive 14.5 inch diameter at the rear axle.

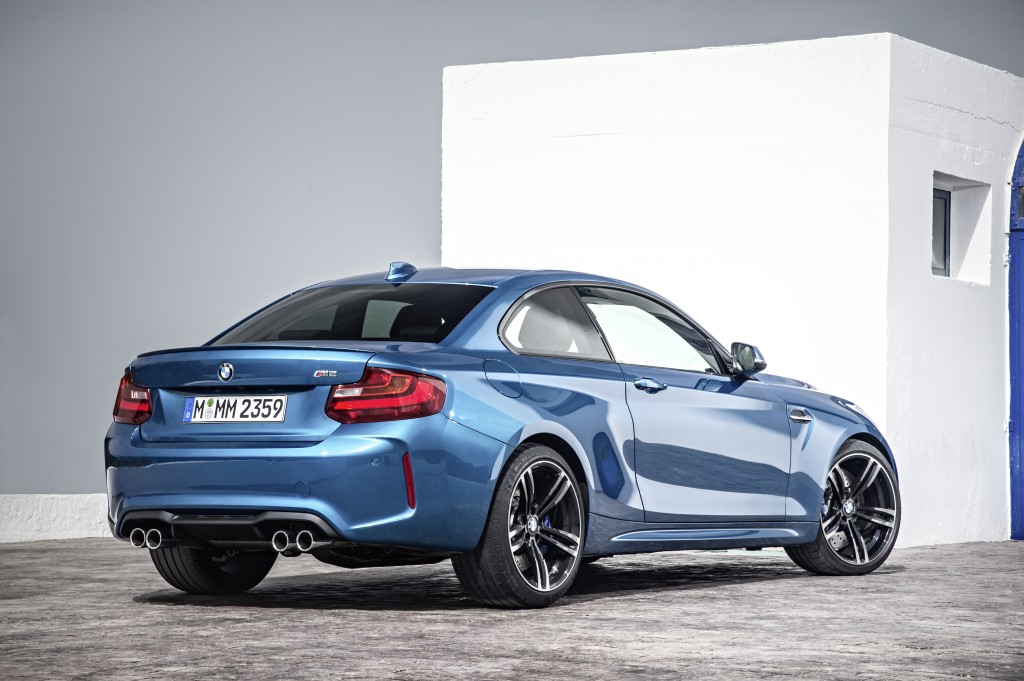

P90199669-highRes

Unlike conventional hydraulic steering systems, the all-new BMW M2’s Electric Power Steering does not require any energy when the car is being driven in a straight line or standing still with the engine running. This enables an improvement in fuel economy of roughly 0.6 mpg.

The Active M Differential in the all-new BMW M2 optimizes traction and maximizes directional stability. This electronically controlled multi-plate limited-slip differential takes traction and directional stability to a new level. The multi-plate limited-slip differential is proactively controlled with extremely high precision and speed. The locking effect can be varied between 0 and 100 percent according to the driving situation.

The all-new BMW M2 is equipped with M Dynamic Mode (MDM), a sub-function of Dynamic Stability Control (DSC). DSC effectively counteracts oversteer or understeer or a loss of traction by taking several measures (reducing engine power, braking individual wheels) to stabilize the car. However, in certain situations – e.g. sporty and dynamic driving on the race track – a greater degree of wheel slip can be an advantage.

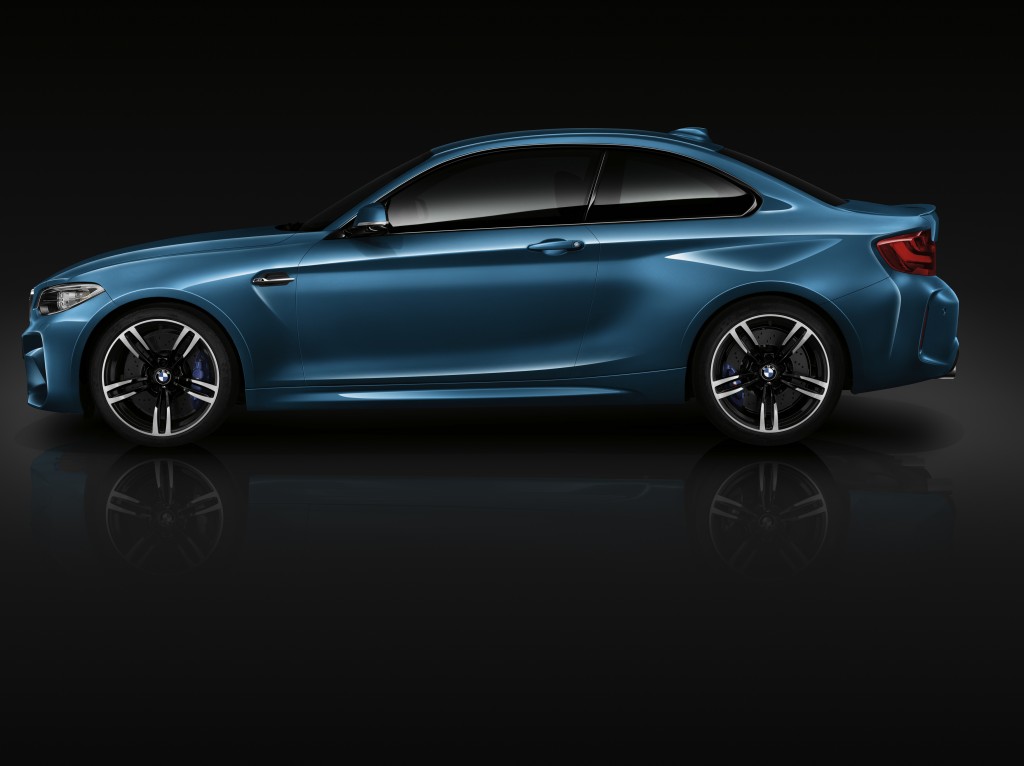

P90199709-highRes

For this reason M Dynamic Mode can be activated in the recommended track mode (SPORT+) or can be engaged with a short dab of the DSC button. The stabilizing measures familiar from DSC mode now intervene at a later stage, increasing the freedom available to drivers while still keeping an electronic safety system in action. The extra wheel slip enhances traction and therefore propulsion. More significant oversteer and understeer are possible, as are moderate, controlled drifts, but the Dynamic Stability Control active safety aids can still be relied on in critical situations.

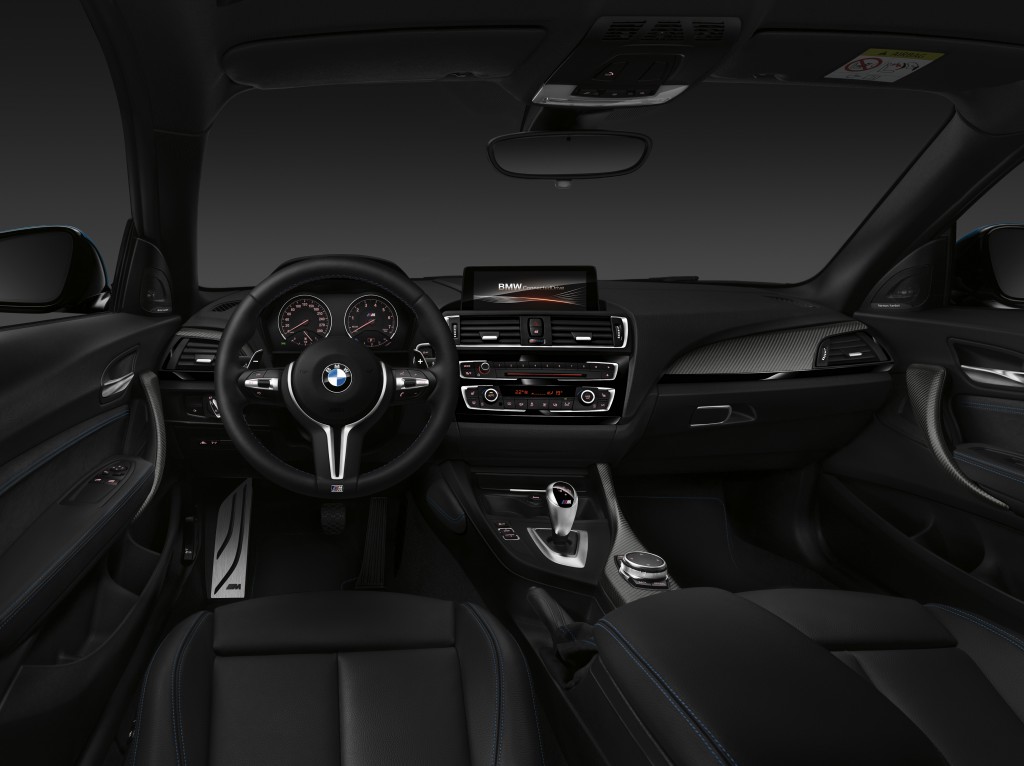

P90199705-highRes

The all-new M2 is available in four exterior paint finishes: Long Beach Blue metallic, Alpine White, Black Sapphire metallic and Mineral Grey metallic. As with all BMW M models, the interior architecture of the all-new BMW M2 also stands out with its pervasive driver focus and flawless ergonomics. The car is fitted with a host of BMW M-specific equipment details to reflect its prominent dynamic capabilities. The sports seats, in black Dakota leather with blue contrast stitching and an M logo in the backrests, have adjustable side bolsters to give the driver and front passenger optimum support through fast corners. An M footrest and knee pad on the center console for the driver continue the theme.

We can’t wait to drive this car when it arrives! It’ll make a great addition to our M Performance lineup.
